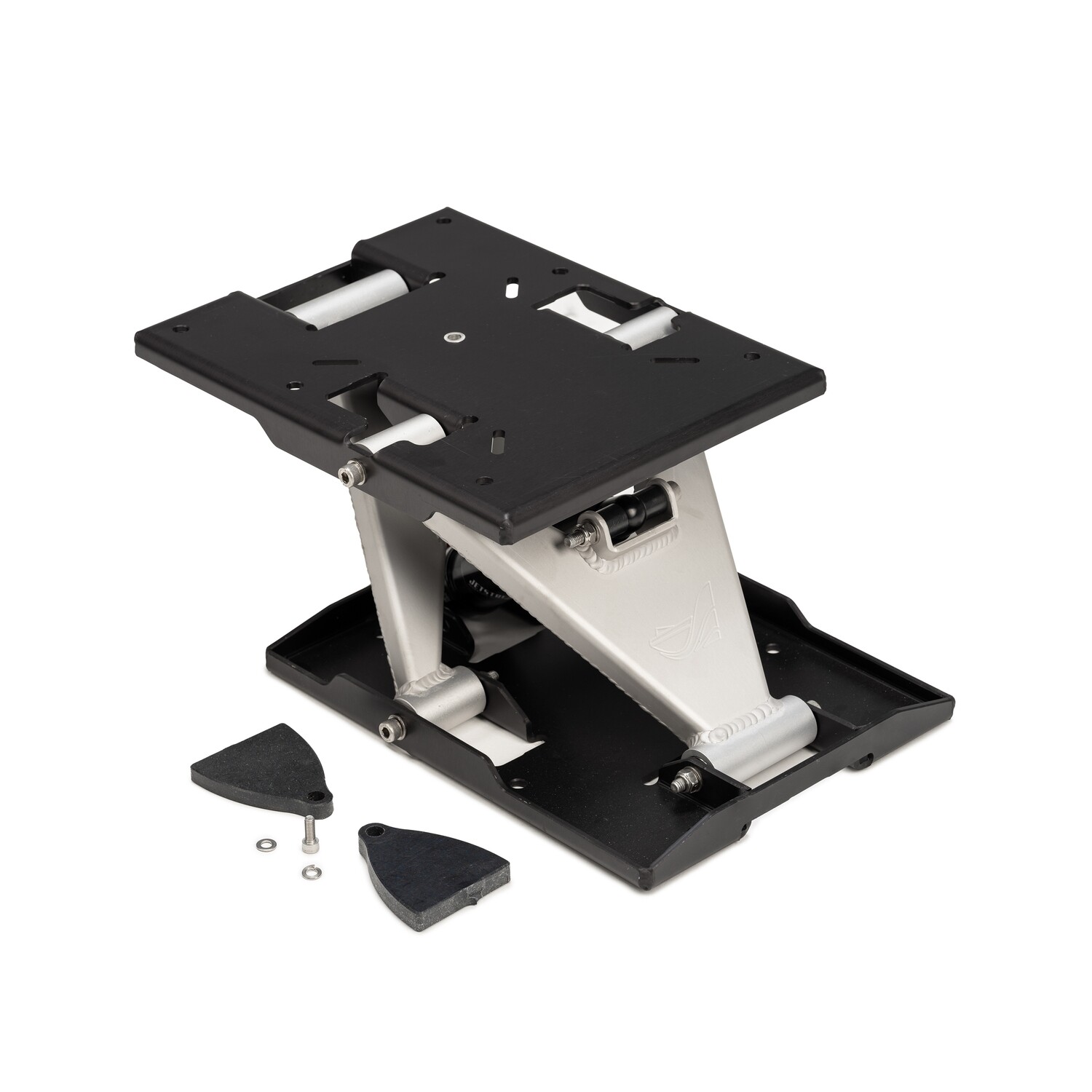

Air Ride Suspension Seat by Jetstream

Experience ultimate comfort with the Air Ride Suspension Bases by Jetstream Boats. Perfect for any marine application.

Made from ultra lightweight aluminum components, anodized to resist severe conditions, and with an extremally low ride height these are perfect for the size constraints of mini jet boats.

- Infinite compression adjustability with air pressure via standard Schrader valve.

- Recoil adjustment

- 3 height adjustments

- Bolt pattern to accommodate all marine seats.

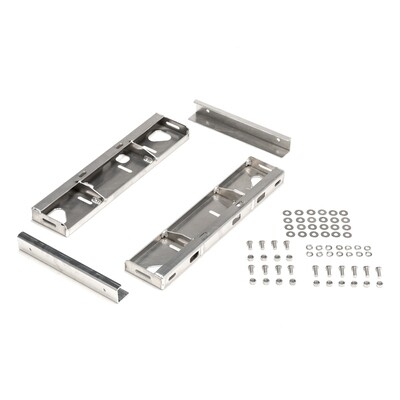

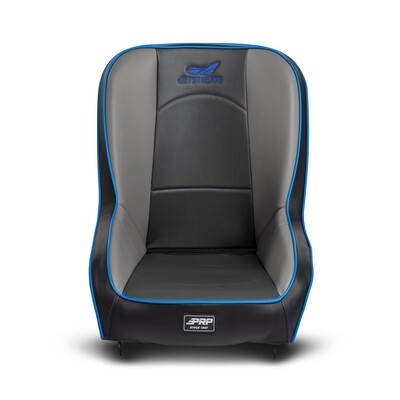

- Use with the Jetstream Seat Mount for universal fitment with offroad seats (PRP, RZR, Corbeau etc...)

TECHNICAL SPECS

Position A height - MAX:7.75'' MIN:5.00''

Position B height - MAX:8.375'' MIN:5.375''

Position C height - MAX:9.00'' MIN:6.25''

Width overall: 8.188''

Length overall: 17.75''

Mounting plate length: 13.25''

mounting plate width: 8.188''

Vertical travel : 2 3/4'''

Forward travel position A: 1 1/4''

Forward travel position B: 1 1/2'''' ''

Forward travel position C: 2 ''

weight rating:220lbs
